The OP27 operational amplifiers combine outstanding noise performance with excellent precision and high-speed specifications. The wideband noise is only 3 nV/
Hz and with the 1/f noise corner at 2.7 Hz, low noise is maintained for all low-frequency applications.
The outstanding characteristics of the OP27 make these devices excellent choices for low-noise amplifier applications requiring precision performance and reliability.
The OP27 series is compensated for unity gain. The OP27A and OP27C are characterized for operation over the full military temperature range of –55°C to 125°C.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 44 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 8 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.025 |
| GBW (typ) (MHz) | 8 |
| Slew rate (typ) (V/µs) | 2.8 |
| Rail-to-rail | No |
| Offset drift (typ) (µV/°C) | 0.2 |
| Iq per channel (typ) (mA) | 2.8 |
| Vn at 1 kHz (typ) (nV√Hz) | 3 |
| CMRR (typ) (dB) | 126 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| Input bias current (max) (pA) | 40000 |
| Iout (typ) (A) | 0.03 |
| Architecture | Bipolar |
| Input common mode headroom (to negative supply) (typ) (V) | 4 |
| Input common mode headroom (to positive supply) (typ) (V) | -4 |
| Output swing headroom (to negative supply) (typ) (V) | 1.2 |
| Output swing headroom (to positive supply) (typ) (V) | -1.2 |

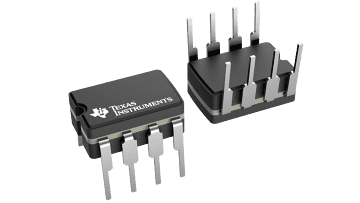

| CDIP (JG) | 8 | 64.032 mm² 9.6 x 6.67 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
