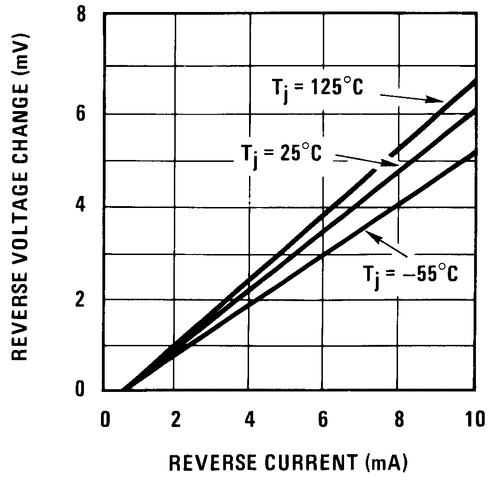

The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.

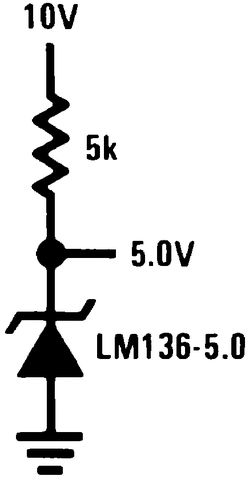

The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
All trademarks are the property of their respective owners.
| VO (V) | 5 |
| Initial accuracy (max) (%) | 1 |
| VO adj (min) (V) | 4 |
| VO adj (max) (V) | 6 |
| Iz for regulation (min) (µA) | 600 |
| Reference voltage (V) | adjustable |
| Rating | Military |
| Temp coeff (max) (ppm/°C) | 40 |
| Operating temperature range (°C) | -55 to 125 |
| Iout/Iz (max) (mA) | 10 |

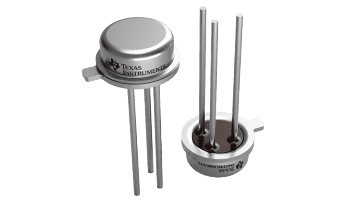

| TO-CAN (NDV) | 3 | 34.8704 mm² 6.41 x 5.44 |
