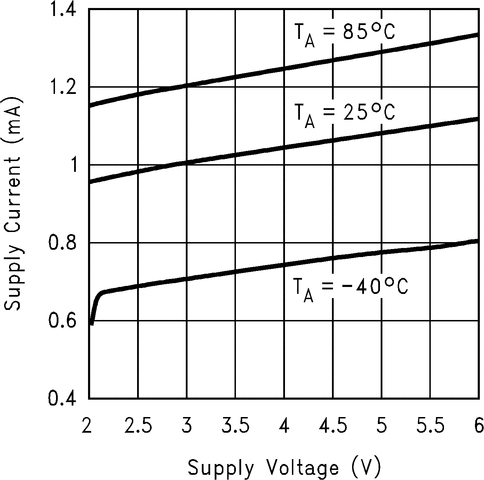

The LMV721-N (Single) and LMV722 (Dual) are low noise, low voltage, and low power op amps, that can be designed into a wide range of applications. The LMV721-N/LMV722 has a unity gain bandwidth of 10MHz, a slew rate of 5V/us, and a quiescent current of 930uA/amplifier at 2.2V.
The LMV721-N/722 are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage are 3.5mV (Over Temp) for the LMV721-N/LMV722. Their capacitive load capability is also good at low supply voltages. The operating range is from 2.2V to 5.5V.
The chip is built with TI's advanced Submicron Silicon-Gate BiCMOS process. The single version, LMV721-N, is available in 5 pin SOT-23 and a SC70 (new) package. The dual version, LMV722, is available in an SOIC-8 and VSSOP-8 package.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.2 |
| Rail-to-rail | In to V-, Out |
| GBW (typ) (MHz) | 10 |
| Slew rate (typ) (V/µs) | 5.25 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |
| Iq per channel (typ) (mA) | 0.9 |
| Vn at 1 kHz (typ) (nV√Hz) | 8.5 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Offset drift (typ) (µV/°C) | 0.6 |
| Input bias current (max) (pA) | 400000 |
| CMRR (typ) (dB) | 89 |
| Iout (typ) (A) | 0.024 |
| Architecture | Bipolar |
| Input common mode headroom (to negative supply) (typ) (V) | -0.3 |
| Input common mode headroom (to positive supply) (typ) (V) | -0.9 |
| Output swing headroom (to negative supply) (typ) (V) | 0.076 |
| Output swing headroom (to positive supply) (typ) (V) | -0.048 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
