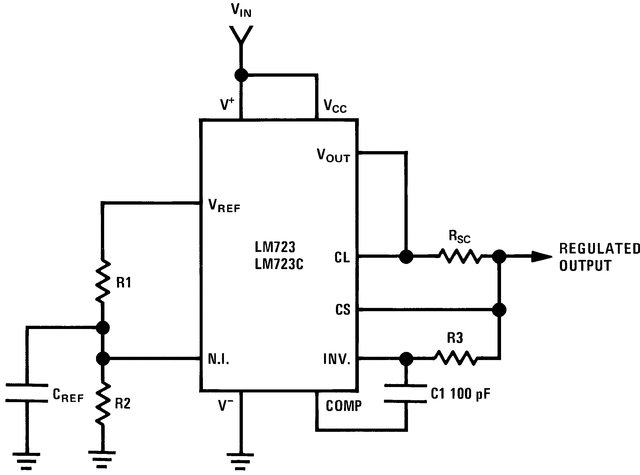

The LM723 is a voltage regulator designed primarily for series regulator applications. By itself, it will supply output currents up to 150 mA; but external transistors can be added to provide any desired load current. The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.
The LM723 is also useful in a wide range of other applications such as a shunt regulator, a current regulator or a temperature controller.
All trademarks are the property of their respective owners.
| Output options | Adjustable Output |
| Iout (max) (A) | 0.15 |
| Vin (max) (V) | 40 |
| Vin (min) (V) | 9.5 |
| Vout (max) (V) | 37 |
| Vout (min) (V) | 2 |
| Fixed output options (V) | 0 |
| Noise (µVrms) | 86 |
| Iq (typ) (mA) | 1.7 |
| Thermal resistance θJA (°C/W) | 66 |
| Rating | Space |
| Load capacitance (min) (µF) | 0 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| PSRR at 100 KHz (dB) | 0 |
| Dropout voltage (Vdo) (typ) (mV) | 3000 |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |

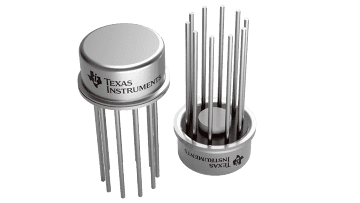

| TO-CAN (LME) | 10 | 80.2816 mm² 8.96 x 8.96 |
