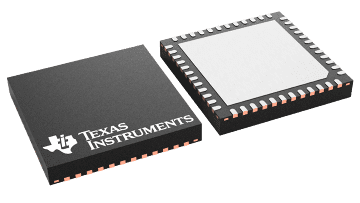

The TRF3710 is a highly linear and integrated direct-conversion quadrature demodulator optimized for Third-Generation (3G) wireless infrastructure. The TRF3710 integrates balanced I and Q mixers, LO buffers and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF3710 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter.
Housed in a 7X7mm QFN package, the TRF3710 provides the smallest and most integrated receiver solution available for high performance equipment.
All trademarks are the property of their respective owners.
| BB BW LP filter (min) (MHz) | 0.615 |
| BB BW LP filter (max) (MHz) | 1.92 |
| Supply voltage (typ) (V) | 5 |
| IIP3 (typ) (dBm) | 21 |
| IIP2 (typ) (dBm) | 60 |
| Frequency range (typ) | 1.7 to 2.0 GHz |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| VQFN (RGZ) | 48 | 49 mm² 7 x 7 |
