The LMV751 is a high performance CMOS operational amplifier intended for applications requiring low noise and low input offset voltage. It offers modest bandwidth of 4.5MHz for very low supply current and is unity gain stable.
The output stage is able to drive high capacitance, up to 1000pF and source or sink 8mA output current.
It is supplied in the space saving SOT-23-5 Tiny package.
The LMV751 is designed to meet the demands of small size, low power, and high performance required by cellular phones and similar battery operated portable electronics.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |
| Rail-to-rail | In to V-, Out |
| GBW (typ) (MHz) | 5 |
| Slew rate (typ) (V/µs) | 2.3 |
| Vos (offset voltage at 25°C) (max) (mV) | 1 |
| Iq per channel (typ) (mA) | 0.6 |

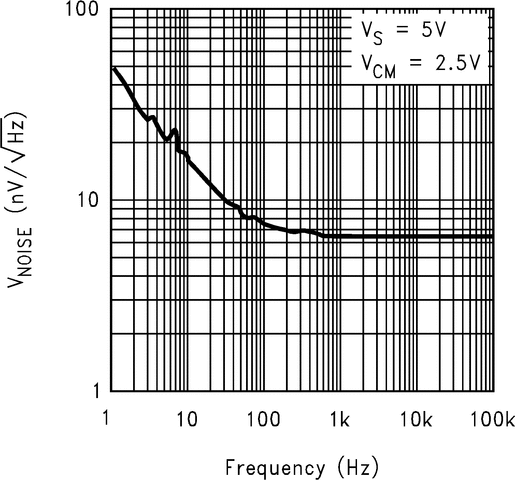

| Vn at 1 kHz (typ) (nV√Hz) | 6.5 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Offset drift (typ) (µV/°C) | 1 |
| Input bias current (max) (pA) | 100 |
| CMRR (typ) (dB) | 103 |
| Iout (typ) (A) | 0.015 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | 0 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.4 |
| Output swing headroom (to negative supply) (typ) (V) | 0.086 |
| Output swing headroom (to positive supply) (typ) (V) | -0.11 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
