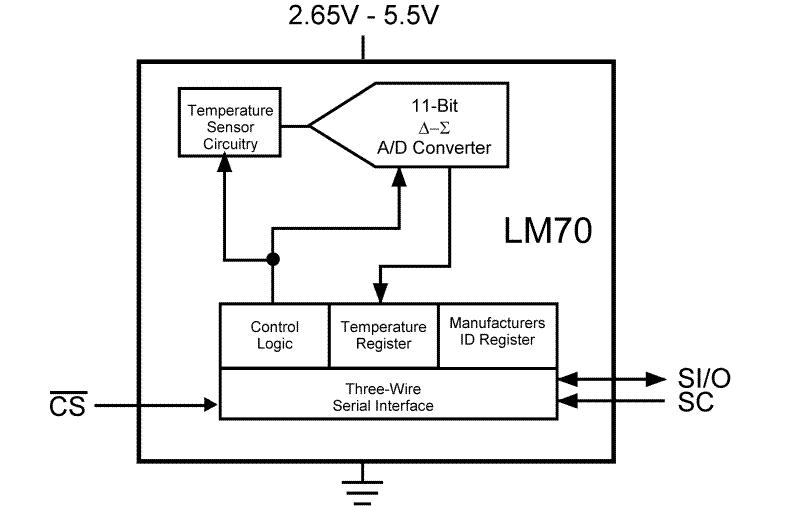

The LM70 is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface available in WSON and VSSOP 8-pin packages. The host can query the LM70 at any time to read temperature. A shutdown mode decreases power consumption to less than 10 µA. This mode is useful in systems where low average power consumption is critical.
The LM70 has 10-bit plus sign temperature resolution (0.25°C per LSB) while operating over a temperature range of −55°C to +150°C.
The LM70's 2.65V to 5.5V supply voltage range, low supply current and simple SPI interface make it ideal for a wide range of applications. These include thermal management and protection applications in hard disk drives, printers, electronic test equipment, and office electronics.
All trademarks are the property of their respective owners.
| Local sensor accuracy (max) | 2 |
| Type | Local |
| Operating temperature range (°C) | -55 to 150 |
| Supply voltage (min) (V) | 2.65 |
| Interface type | SPI |
| Supply voltage (max) (V) | 5.5 |
| Features | UL recognized |
| Supply current (max) (µA) | 490 |
| Temp resolution (max) (Bits) | 11 |
| Remote channels (#) | 0 |
| Rating | Catalog |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |

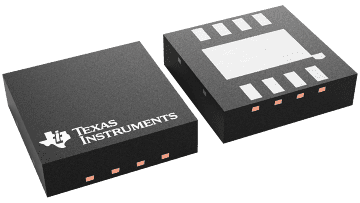

| WSON (NGK) | 8 | 9 mm² 3 x 3 |
