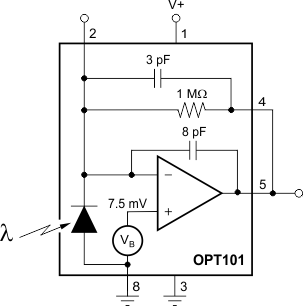

The OPT101 is a monolithic photodiode with on-chip transimpedance amplifier. The integrated combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up, and gain peaking as a result of stray capacitance. Output voltage increases linearly with light intensity. The amplifier is designed for single or dual power-supply operation.
The 0.09 inch × 0.09 inch (2.29 mm × 2.29 mm) photodiode operates in the photoconductive mode for excellent linearity and low dark current.

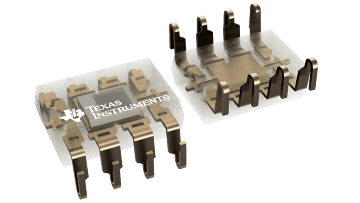

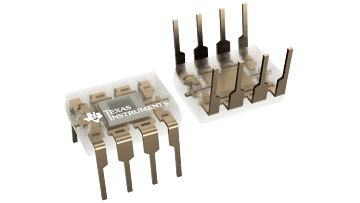

The OPT101 operates from 2.7 V to 36 V supplies and quiescent current is only 120 µA. This device is available in clear plastic 8-pin PDIP, and J-lead SOP for surface mounting. The temperature range is 0°C to 70°C.
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Interface type | Voltage |
| Input type | Light |
| PDIP (NTC) | 8 | 89.535 mm² 9.525 x 9.4 |
| SOP (DTL) | 8 | 100.3935 mm² 9.525 x 10.54 |
