The TS3V712E is a high-bandwidth, 7-channel video multiplexer/demultiplexer for switching between multiple VGA sources or end points. The device is designed for ensuring video signal integrity and minimizing the video signal attenuation by providing high bandwidth of 1.36 GHz.
The video signals are protected against high ESD with integrated diodes to VDD and GND that will support up to 6-kV of ESD HBM and 4-kV contact protection.

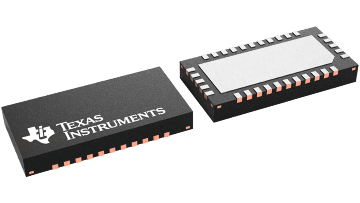

The TS3V712E is available in a 32-pin QFN package and is characterized for operation over the free-air temperature range of –40°C to 85°C.
| Protocols | Composite, RGB, VGA |
| Configuration | 2 |
| Number of channels | 7 |
| Bandwidth (MHz) | 1360 |
| Supply voltage (max) (V) | 3.6 |
| Supply voltage (min) (V) | 3 |
| Ron (typ) (mΩ) | 3000 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 3.6 |
| Supply current (typ) (µA) | 200 |
| ESD HBM (typ) (kV) | 6 |
| Operating temperature range (°C) | -40 to 85 |
| Crosstalk (dB) | -50 |
| ESD CDM (kV) | 4 |
| Input/output continuous current (max) (mA) | 128 |
| COFF (typ) (pF) | 3 |
| CON (typ) (pF) | 7 |
| Off isolation (typ) (dB) | -37 |
| OFF-state leakage current (max) (µA) | 1 |
| Propagation delay time (µs) | 0.00025 |
| Ron (max) (mΩ) | 4000 |
| Ron channel match (max) (Ω) | 1 |
| RON flatness (typ) (Ω) | 0.5 |
| Turnoff time (disable) (max) (ns) | 12 |
| Turnon time (enable) (max) (ns) | 11 |
| VIH (min) (V) | 2 |
| VIL (max) (V) | 0.8 |
| WQFN (RTG) | 32 | 18 mm² 6 x 3 |
