The TS5A3357 is a high-performance, single-pole triple throw (SP3T) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and low input/output capacitance and, thus, causes a very low signal distortion. The break-before-make feature allows transferring of a signal from one port to another, with a minimal signal distortion. This device also offers a low charge injection which makes this device suitable for high-performance audio and data acquisition systems.
| Configuration | 3 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 5 |
| CON (typ) (pF) | 17 |
| ON-state leakage current (max) (µA) | 1 |
| Supply current (typ) (µA) | 0.001 |
| Bandwidth (MHz) | 334 |
| Operating temperature range (°C) | -40 to 125 |
| Features | Break-before-make |
| Input/output continuous current (max) (mA) | 100 |
| Rating | Automotive |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |

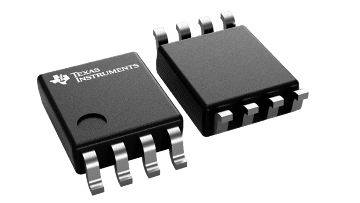

| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
