TS5V330C

正在供货

5V、2:1 (SPDT)、4 通道视频开关，带改进的 ESD 保护

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TS5V330C is a 4-bit 1-of-2 multiplexer/demultiplexer video switch with a single switch-enable (EN) input. The select (IN) input controls the data path of the multiplexer/demultiplexer. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and a high impedance state exists between the D and S ports.

Low differential gain and phase makes this switch ideal for video applications. The device has a wide bandwidth and low cross talk which makes it suitable for high frequency video applications. The device can be used for RGB and composite video switching applications.

This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, EN should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Low Differential Gain and Phase
(Typical D_G = 0.24%, Typical D_P = 0.039°)
Wide Bandwidth (Typical BW > 288 MHz)
Low Cross-Talk (Typical X_TALK = –87 dB)
Low Power Consumption
(Maximum I_CC = 3 µA)
Bidirectional Data Flow, With Near-Zero Propagation Delay
Low ON-State Resistance (Typical r_ON = 3 )
V_CC Operating Range From 4.5 V to 5.5 V
I_off Supports Partial-Power-Down Mode Operation
Data and Control Inputs Provide Undershoot Clamp Diode
Control Inputs Can be Driven by TTL or 5-V/3.3-V CMOS Outputs
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Suitable for Both RGB and Composite Video Switching

Protocols	Composite, RGB
Configuration	1
Number of channels	4
Bandwidth (MHz)	250
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	4
Ron (typ) (mΩ)	3000
Input/output voltage (min) (V)	0
Input/output voltage (max) (V)	5.5
ESD HBM (typ) (kV)	2
Operating temperature range (°C)	-40 to 85
Crosstalk (dB)	-87
ESD CDM (kV)	1
Input/output continuous current (max) (mA)	128
COFF (typ) (pF)	5.5
CON (typ) (pF)	16.5
Off isolation (typ) (dB)	-54
OFF-state leakage current (max) (µA)	10
Propagation delay time (µs)	0.006
Ron (max) (mΩ)	10000
Turnoff time (disable) (max) (ns)	5.9
Turnon time (enable) (max) (ns)	6
VIH (min) (V)	2
VIL (max) (V)	0.8

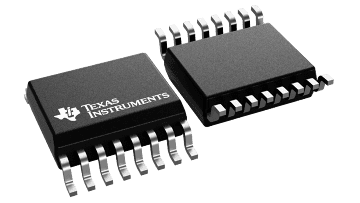

SOIC (D)	16	59.4 mm² 9.9 x 6
SSOP (DBQ)	16	29.4 mm² 4.9 x 6
TSSOP (PW)	16	32 mm² 5 x 6.4
