The TS3A4741 and TS3A4742 are bi-directional, 2-channel single-pole/single-throw (SPST) analog switches with low ON-state resistance (Ron), low-voltage, that operate from a single 1.6-V to 3.6-V supply. These devices have fast switching speeds, handle rail-to-rail analog signals, and consume very low quiescent power.
The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply.

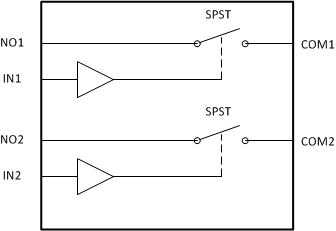

The TS3A4741 has two normally open (NO) switches, and the TS3A4742 has two normally closed (NC) switches.
| Configuration | 1 |
| Number of channels | 2 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3 |
| Protocols | Analog |
| Ron (typ) (Ω) | 0.7 |
| CON (typ) (pF) | 43 |
| ON-state leakage current (max) (µA) | 0.005 |
| Bandwidth (MHz) | 125 |
| Operating temperature range (°C) | -40 to 85 |
| Features | 1.8-V compatible control inputs |
| Input/output continuous current (max) (mA) | 100 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 3.6 |
| Supply voltage (max) (V) | 3.6 |

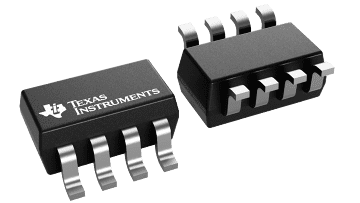

| SOT-23 (DCN) | 8 | 4.64 mm² 2.9 x 1.6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
