The TS3USB30 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (955 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
| Protocols | USB 2.0 |
| Configuration | 2 |
| Number of channels | 2 |
| Bandwidth (MHz) | 955 |
| Supply voltage (max) (V) | 4.3 |
| Supply voltage (min) (V) | 3 |
| Ron (typ) (mΩ) | 6000 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 4.3 |
| Supply current (typ) (µA) | 1 |
| ESD HBM (typ) (kV) | 6 |
| Operating temperature range (°C) | -40 to 85 |
| Crosstalk (dB) | -56 |
| ESD CDM (kV) | 1 |
| Input/output continuous current (max) (mA) | 64 |
| COFF (typ) (pF) | 2 |
| CON (typ) (pF) | 7 |
| Off isolation (typ) (dB) | -39 |
| OFF-state leakage current (max) (µA) | 2 |
| Propagation delay time (µs) | 0.00025 |
| Ron (max) (mΩ) | 10000 |
| Ron channel match (max) (Ω) | 0.35 |
| RON flatness (typ) (Ω) | 2 |
| Turnoff time (disable) (max) (ns) | 25 |
| Turnon time (enable) (max) (ns) | 30 |
| VIH (min) (V) | 1.3 |
| VIL (max) (V) | 0.7 |

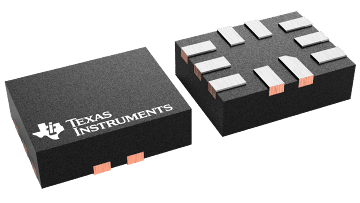

| UQFN (RSW) | 10 | 2.52 mm² 1.8 x 1.4 |
