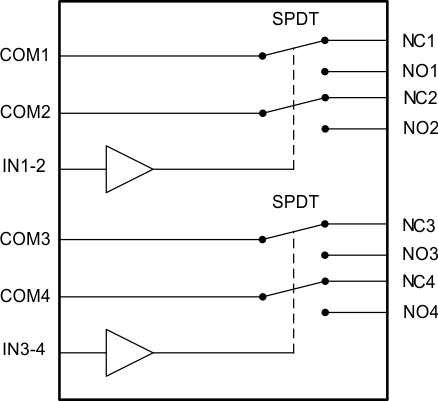

The TS3A44159 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65 V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
| Configuration | 2 |
| Number of channels | 4 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3 |
| Protocols | Analog |
| Ron (typ) (Ω) | 0.3 |
| CON (typ) (pF) | 162 |
| ON-state leakage current (max) (µA) | 0.05 |
| Supply current (typ) (µA) | 0.001 |
| Bandwidth (MHz) | 35 |
| Operating temperature range (°C) | -40 to 85 |
| Features | 1.8-V compatible control inputs, Break-before-make |
| Input/output continuous current (max) (mA) | 200 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 4.3 |
| Supply voltage (max) (V) | 4.3 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |

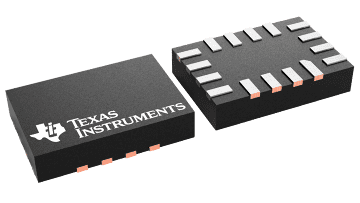

| UQFN (RSV) | 16 | 4.68 mm² 2.6 x 1.8 |

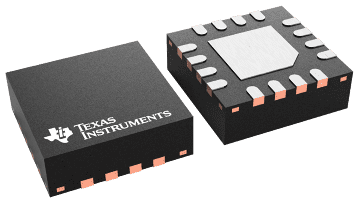

| VQFN (RGT) | 16 | 9 mm² 3 x 3 |
