TS3DS26227

正在供货

具有输入逻辑转换功能的 3.3V、2:1 (SPDT)、2 通道差分信号开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TS3DS26227 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from
2.3 V to 3.6 V. The device offers high-bandwidth data paths, and a break-before-make feature to prevent signal distortion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable applications.

The TS3DS26227 has a separate logic supply pin (V_IO) that operates from 1.65 V to 1.95 V. V_IO powers the control circuitry, which allows the TS3DS26227 to be controlled by 1.8-V signals.

High-Bandwidth Data Paths – Up to 800 MHz
Specified Break-Before-Make Switching
Control Inputs Reference to V_IO
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
2.3-V to 3.6-V Power Supply (V₊)
1.65-V to 1.95-V Logic Supply (V_IO)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 4000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
- 200-V Machine Model (A115-A)

Configuration	2
Number of channels	2
Power supply voltage - single (V)	2.5, 3.3
Protocols	MIPI
Ron (typ) (Ω)	3.5
CON (typ) (pF)	10.5
ON-state leakage current (max) (µA)	0.03
Supply current (typ) (µA)	0.1
Bandwidth (MHz)	800
Operating temperature range (°C)	-40 to 85
Features	Break-before-make
Input/output continuous current (max) (mA)	64
Rating	Catalog
Drain supply voltage (max) (V)	3.6
Supply voltage (max) (V)	3.6

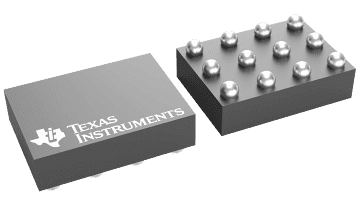

DSBGA (YZT)

3.9375 mm² 2.25 x 1.75
