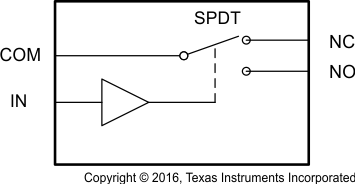

The TS5A9411 device is a bidirectional, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers low ON-state resistance, low leakage, and low power with a break-before-make feature. These features make this device suitable for portable and battery-powered applications.
| Configuration | 2 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 5.3 |
| CON (typ) (pF) | 8.5 |
| ON-state leakage current (max) (µA) | 0.003 |
| Supply current (typ) (µA) | 0.01 |
| Bandwidth (MHz) | 100 |
| Operating temperature range (°C) | -40 to 85 |
| Features | Break-before-make |
| Input/output continuous current (max) (mA) | 50 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |
| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
