The TS3L500 is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals.
The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T.
This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.
| Protocols | 10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS |
| Configuration | 2 |
| Number of channels | 11 |
| Bandwidth (MHz) | 1100 |
| Supply voltage (max) (V) | 3.6 |
| Supply voltage (min) (V) | 3 |
| Ron (typ) (mΩ) | 4000 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 5.5 |
| Supply current (typ) (µA) | 250 |
| ESD HBM (typ) (kV) | 2 |
| Operating temperature range (°C) | -40 to 85 |
| Crosstalk (dB) | -37 |
| ESD CDM (kV) | 1 |
| Input/output continuous current (max) (mA) | 128 |
| COFF (typ) (pF) | 2.5 |
| CON (typ) (pF) | 8 |
| Off isolation (typ) (dB) | -37 |
| Propagation delay time (µs) | 0.00025 |
| Ron (max) (mΩ) | 6000 |
| Ron channel match (max) (Ω) | 1 |
| RON flatness (typ) (Ω) | 0.5 |
| Turnoff time (disable) (max) (ns) | 9 |
| Turnon time (enable) (max) (ns) | 15 |
| VIH (min) (V) | 2 |
| VIL (max) (V) | 0.8 |

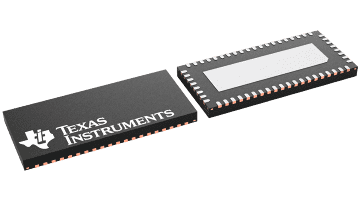

| WQFN (RHU) | 56 | 55 mm² 11 x 5 |
