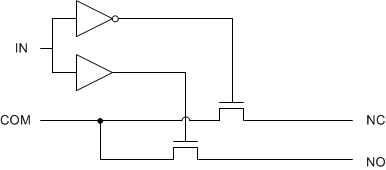

The TS5A3160 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
| Configuration | 2 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 0.7 |
| CON (typ) (pF) | 55 |
| ON-state leakage current (max) (µA) | 0.1 |
| Supply current (typ) (µA) | 0.001 |
| Bandwidth (MHz) | 105 |
| Operating temperature range (°C) | -40 to 85 |
| Features | Make-before-break, Powered-off protection |
| Input/output continuous current (max) (mA) | 200 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |

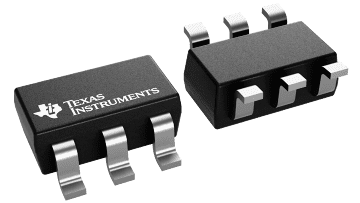

| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |

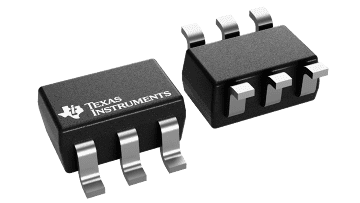

| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
