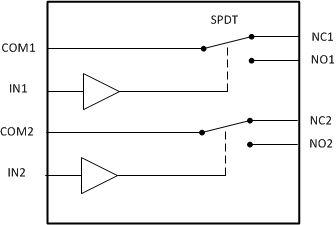

The TS5A23159 is a bidirectional 2-channel single-pole double-throw (SPDT) switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.
| Configuration | 2 |
| Number of channels | 2 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 0.7 |
| CON (typ) (pF) | 54.5 |
| ON-state leakage current (max) (µA) | 0.1 |
| Supply current (typ) (µA) | 0.01 |
| Bandwidth (MHz) | 105 |
| Operating temperature range (°C) | -40 to 85 |
| Features | Break-before-make, Powered-off protection |
| Input/output continuous current (max) (mA) | 200 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |

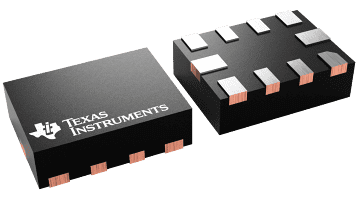

| UQFN (RSE) | 10 | 3 mm² 2 x 1.5 |
| VSSOP (DGS) | 10 | 14.7 mm² 3 x 4.9 |
