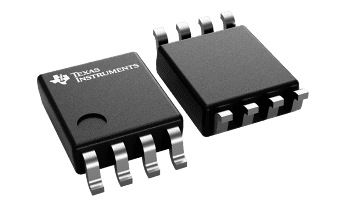

The TS5A3154 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
| Configuration | 2 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 0.8 |
| CON (typ) (pF) | 57 |
| ON-state leakage current (max) (µA) | 0.15 |
| Supply current (typ) (µA) | 2.5 |
| Bandwidth (MHz) | 100 |
| Operating temperature range (°C) | -40 to 85 |
| Features | Make-before-break, Powered-off protection |
| Input/output continuous current (max) (mA) | 200 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |
| DSBGA (YZP) | 8 | 2.8125 mm² 2.25 x 1.25 |
| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
