The TS5A1066 is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ (peak) can be transmitted in either direction.
| Configuration | 1 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 7.5 |
| CON (typ) (pF) | 14 |
| ON-state leakage current (max) (µA) | 2 |
| Supply current (typ) (µA) | 0.05 |
| Bandwidth (MHz) | 400 |
| Operating temperature range (°C) | -40 to 85 |
| Input/output continuous current (max) (mA) | 50 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |

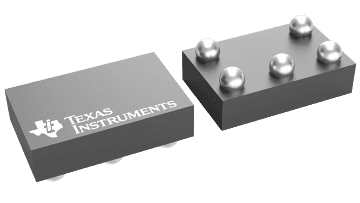

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

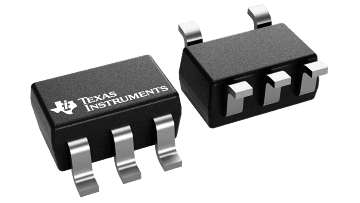

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
