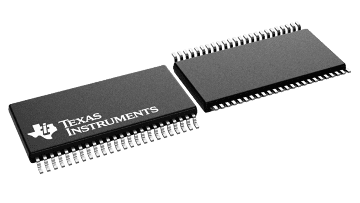

The TS3L301 is a 16-bit to 8-bit multiplexer/demultiplexer local area network (LAN) switch with a single select (SEL) input. The SEL input controls the data path of the multiplexer/demultiplexer.
The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high-bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T.
| Protocols | 10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS |
| Configuration | 2 |
| Number of channels | 8 |
| Bandwidth (MHz) | 900 |
| Supply voltage (max) (V) | 3.6 |
| Supply voltage (min) (V) | 3 |
| Ron (typ) (mΩ) | 4000 |
| Input/output voltage (min) (V) | 0 |
| Input/output voltage (max) (V) | 5 |
| Supply current (typ) (µA) | 250 |
| ESD HBM (typ) (kV) | 2 |
| Operating temperature range (°C) | -40 to 85 |
| Crosstalk (dB) | -90 |
| ESD CDM (kV) | 1 |
| Input/output continuous current (max) (mA) | 128 |
| COFF (typ) (pF) | 10 |
| CON (typ) (pF) | 3.5 |
| Off isolation (typ) (dB) | -39 |
| OFF-state leakage current (max) (µA) | 1 |
| Propagation delay time (µs) | 0.00025 |
| Ron (max) (mΩ) | 8000 |
| Ron channel match (max) (Ω) | 1.2 |
| RON flatness (typ) (Ω) | 0.7 |
| Turnoff time (disable) (max) (ns) | 8.5 |
| Turnon time (enable) (max) (ns) | 11.5 |
| VIH (min) (V) | 2 |
| VIL (max) (V) | 0.8 |
| TSSOP (DGG) | 48 | 101.25 mm² 12.5 x 8.1 |
| TVSOP (DGV) | 48 | 62.08 mm² 9.7 x 6.4 |
