TS3V330

正在供货

3.3V、2:1 (SPDT)、4 通道视频开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TS3V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer, with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.

Low differential gain and phase make this switch ideal for composite and RGB video applications. This device has wide bandwidth and low crosstalk, making it suitable for high-frequency applications as well.

This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. This switch maintains isolation during power off.

To ensure the high-impedance state during power up or power down, EN should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Low Differential Gain and Phase (D_G = 0.82%, D_P = 0.1 Degree Typ)
Wide Bandwidth (BW = 300 MHz Min)
Low Crosstalk (X_TALK = -80 dB Typ)
Low Power Consumption (I_CC = 10 µA Max)
Bidirectional Data Flow With Near-Zero Propagation Delay
Low ON-State Resistance (r_on = 3 Typ)
Rail-to-Rail Switching on Data I/O Ports (0 to V_CC)
V_CC Operating Range From 3 V to 3.6 V
I_off Supports Partial-Power-Down Mode Operation
Data and Control Inputs Provide Undershoot Clamp Diode
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Suitable for Both RGB and Composite-Video Switching

Protocols	Composite, RGB
Configuration	2
Number of channels	4
Bandwidth (MHz)	300
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	5000
Input/output voltage (min) (V)	0
Input/output voltage (max) (V)	3.6
Supply current (typ) (µA)	10
ESD HBM (typ) (kV)	2
Operating temperature range (°C)	-40 to 85
Crosstalk (dB)	-80
ESD CDM (kV)	1
Input/output continuous current (max) (mA)	128
COFF (typ) (pF)	10
CON (typ) (pF)	17
Off isolation (typ) (dB)	-50
OFF-state leakage current (max) (µA)	1
Propagation delay time (µs)	0.0025
Ron (max) (mΩ)	10000
Turnoff time (disable) (max) (ns)	3.5
Turnon time (enable) (max) (ns)	6.5
VIH (min) (V)	2
VIL (max) (V)	0.8

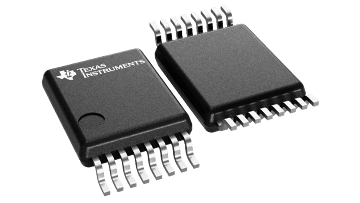

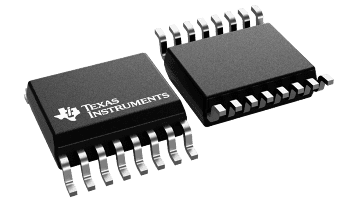

SOIC (D)	16	59.4 mm² 9.9 x 6
SSOP (DBQ)	16	29.4 mm² 4.9 x 6
TSSOP (PW)	16	32 mm² 5 x 6.4
TVSOP (DGV)	16	23.04 mm² 3.6 x 6.4
VQFN (RGY)	16	14 mm² 4 x 3.5
