This dual analog switch is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.1-V to 2.7-V VCC operation.
The SN74AUC2G66 can handle both analog and digital signals. It permits signals with amplitudes of up to 2.7-V (peak) to be transmitted in either direction.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
NanoFree is a trademark of Texas Instruments.
| Configuration | 1 |
| Number of channels | 2 |
| Power supply voltage - single (V) | 0.8, 1.2, 1.8, 2.5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 4 |
| CON (typ) (pF) | 7 |
| ON-state leakage current (max) (µA) | 1 |
| Bandwidth (MHz) | 500 |
| Operating temperature range (°C) | -40 to 85 |
| Input/output continuous current (max) (mA) | 50 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 2.7 |
| Supply voltage (max) (V) | 2.7 |

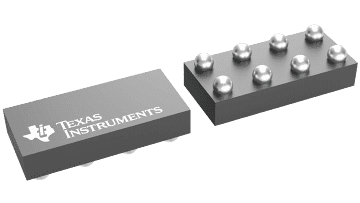

| DSBGA (YZP) | 8 | 2.8125 mm² 2.25 x 1.25 |

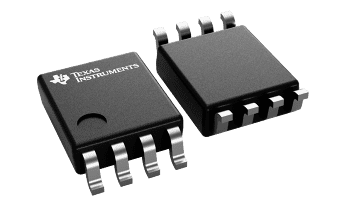

| SSOP (DCT) | 8 | 11.8 mm² 2.95 x 4 |
| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
