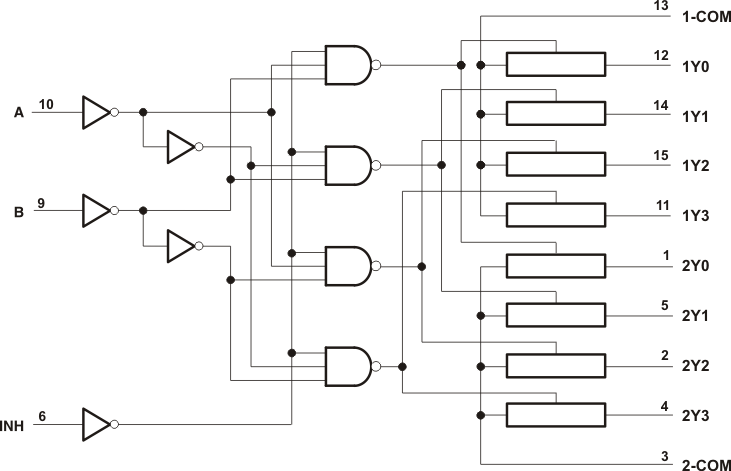

These dual 4-channel CMOS analog multiplexers and demultiplexers are designed for 2-V to 5.5-V VCC operation.
The SN7LV4052A-Q1 devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak).
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
| Configuration | 4 |
| Number of channels | 2 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 100 |
| CON (typ) (pF) | 5.6 |
| ON-state leakage current (max) (µA) | 2 |
| Bandwidth (MHz) | 50 |
| Operating temperature range (°C) | -40 to 125 |
| Input/output continuous current (max) (mA) | 25 |
| Rating | Automotive |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
