SN74CBT3244C

SN74CBT3244C

正在供货

具有 –2V 下冲保护和 2 个控制输入的 5V、1:1 (SPST)、8 通道 FET 总线开关

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The SN74CBT3244C is a high-speed TTL-compatible FET bus switch with low ON-state resistance (ron), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT3244C provides protection for undershoot up to –2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.

The SN74CBT3244C is organized as two 4-bit bus switches with separate output-enable (1OE, 2OE) inputs. It can be used as two 4-bit bus switches or as one 8-bit bus switch. When OE is low, the associated 4-bit bus switch is ON, and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the associated 4-bit bus switch is OFF, and the high-impedance state exists between the A and B ports.

This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

  • Undershoot Protection for Off-Isolation on A and B Ports Up to –2 V
  • Bidirectional Data Flow, With Near-Zero Propagation Delay
  • Low ON-State Resistance (ron) Characteristics (ron = 3 Typical)
  • Low Input/Output Capacitance Minimizes Loading and Signal Distortion (Cio(OFF) = 5 pF Typical)
  • Data and Control Inputs Provide Undershoot Clamp Diodes
  • Low Power Consumption (ICC = 3 µA Max)
  • VCC Operating Range From 4 V to 5.5 V
  • Data I/Os Support 0 to 5-V Signaling Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)
  • Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs
  • Ioff Supports Partial-Power-Down Mode Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 2000-V Human-Body Model (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
  • Supports Both Digital and Analog Applications: USB Interface, Memory Interleaving, Bus Isolation, Low-Distortion Signal Gating

Configuration1
Number of channels8
Power supply voltage - single (V)5
ProtocolsAnalog
Ron (typ) (Ω)3
CON (typ) (pF)14
Bandwidth (MHz)200
Operating temperature range (°C)-40 to 85
FeaturesPowered-off protection, Undershoot protection
Input/output continuous current (max) (mA)128
RatingCatalog
Drain supply voltage (max) (V)5.5
Supply voltage (max) (V)5.5
SOIC (DW)20131.84 mm² 12.8 x 10.3

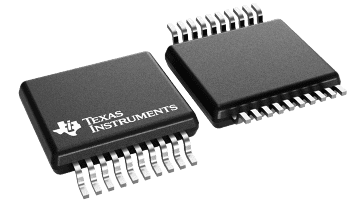

SSOP (DBQ)2051.9 mm² 8.65 x 6
TSSOP (PW)2041.6 mm² 6.5 x 6.4
TVSOP (DGV)2032 mm² 5 x 6.4

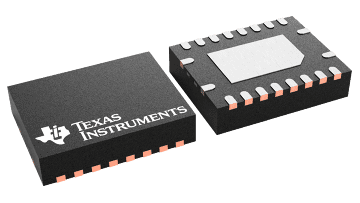

VQFN (RGY)2015.75 mm² 4.5 x 3.5
