SN74AUC1G66

正在供货

2.5V、1:1 (SPST)、单通道模拟开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This single analog switch is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G66 can handle both analog and digital signals. The combined AC and DC signal has to be between V_CC and GND for it to be transmitted in either direction.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Available in the Texas Instruments NanoFree™ Package
Wide V_CC Range of 0.8 V to 2.7 V
Sub-1-V Operable
Low Power Consumption, 10-µA Max I_CC
High On-Off Output Voltage Ratio
High Degree of Linearity
High Speed – Max 0.2 ns
(V_CC= 1.8 V, C_L = 15 pF)
Low On-State Impedance – Typically 9
(V_CC= 2.3 V)
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree Is a trademark of Texas Instruments.

Configuration	1
Number of channels	1
Power supply voltage - single (V)	0.8, 1.2, 1.8, 2.5
Protocols	Analog
Ron (typ) (Ω)	10
CON (typ) (pF)	7
ON-state leakage current (max) (µA)	1
Bandwidth (MHz)	500
Operating temperature range (°C)	-40 to 85
Input/output continuous current (max) (mA)	50
Rating	Catalog
Drain supply voltage (max) (V)	2.7
Supply voltage (max) (V)	2.7

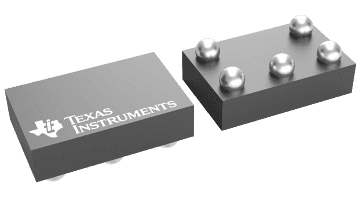

DSBGA (YZP)	5	2.1875 mm² 1.75 x 1.25
SOT-23 (DBV)	5	8.12 mm² 2.9 x 2.8
SOT-SC70 (DCK)	5	4.2 mm² 2 x 2.1
