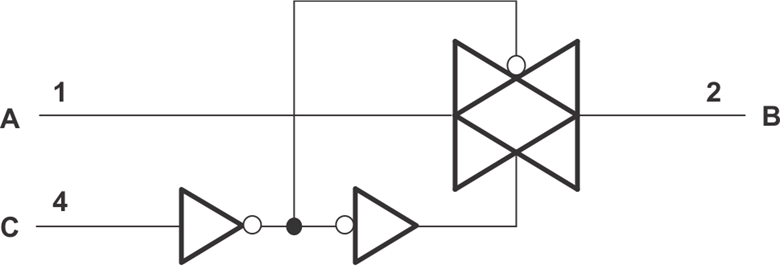

This single analog switch is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak).
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
| Configuration | 1 |
| Number of channels | 1 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 7.5 |
| CON (typ) (pF) | 13 |
| ON-state leakage current (max) (µA) | 1 |
| Supply current (typ) (µA) | 1 |
| Bandwidth (MHz) | 300 |
| Operating temperature range (°C) | -40 to 85 |
| Input/output continuous current (max) (mA) | 50 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |

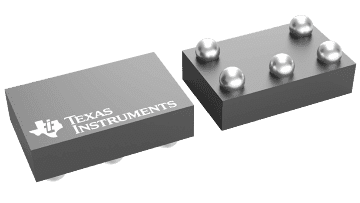

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

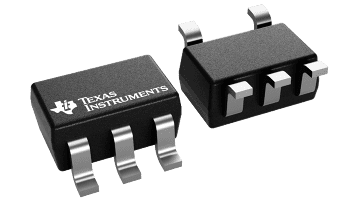

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |

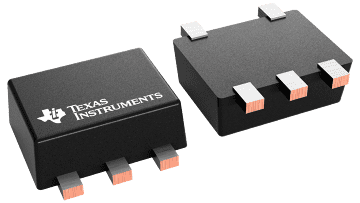

| SOT-5X3 (DRL) | 5 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |

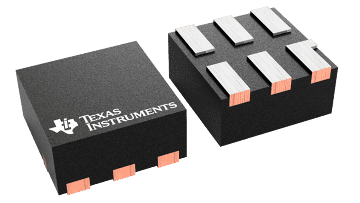

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |

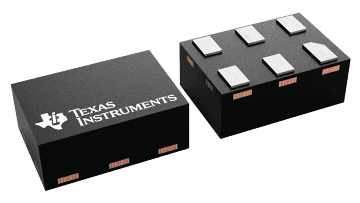

| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
