SN74CBTLV3251

SN74CBTLV3251

正在供货

3.3V、8:1、单通道模拟多路复用器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The SN74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The select inputs (S0, S1, S2) control the data flow. The FET multiplexers/demultiplexers are disabled when the output-enable (OE) input is high.

This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

  • 5- Switch Connection Between Two Ports
  • Rail-to-Rail Switching on Data I/O Ports
  • Ioff Supports Partial-Power-Down Mode Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Configuration8
Number of channels1
Power supply voltage - single (V)2.5, 3.3
ProtocolsAnalog
Ron (typ) (Ω)5
ON-state leakage current (max) (µA)1
Bandwidth (MHz)200
Operating temperature range (°C)-40 to 85
FeaturesPowered-off protection
Input/output continuous current (max) (mA)128
RatingCatalog
Drain supply voltage (max) (V)3.6
Supply voltage (max) (V)3.6

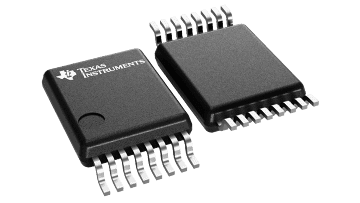

SOIC (D)1659.4 mm² 9.9 x 6
SSOP (DBQ)1629.4 mm² 4.9 x 6
TSSOP (PW)1632 mm² 5 x 6.4
TVSOP (DGV)1623.04 mm² 3.6 x 6.4

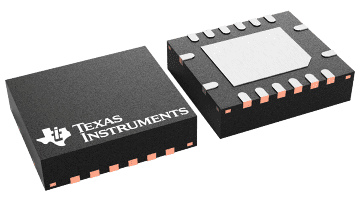

VQFN (RGY)1614 mm² 4 x 3.5
