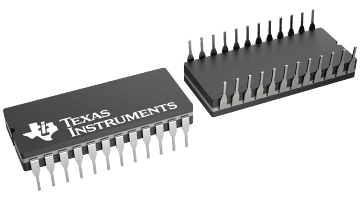

CD4067B-MIL

CD4067B-MIL

正在供货

CMOS 单路 16 通道模拟多路复用器/多路信号分离器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

CD4067B and CD4097B CMOS analog multiplexers/demultiplexers* are digitally controlled analog switches having low ON impedance, low OFF leakage current, and internal address decoding. In addition, the ON resistance is relatively constant over the full input-signal range. The CD4067B is a 16-channel multiplexer with four binary control inputs, A, B, C, D, and an inhibit input, arranged so that any combination of the inputs selects one switch.

The CD4097B is a differential 8-channel multiplexer having three binary control inputs, A, B, C, and an inhibit input. The inputs permit selection of one of eight pairs of switches.

A logic "1" present at the inhibit input turns all channels off.

The CD4067B and CD4097B types are supplied in 24-lead hermetic dual-in-line ceramic packages (F3A suffix), 24-lead dual-in-line plastic packages (E suffix), 24-lead small-outline packages (M, M96, and NSR suffixes), and 24-lead thin shrink small-outline packages (P and PWR suffixes).

  • Low ON resistance: 125 (typ.) over 15 Vp-p signal-input range for VDD - VSS = 15 V
  • High OFF resistance: channel leakage of ±10 pA (typ.) @ VDD - VSS = 10 V
  • Matched switch characteristics: RON = 5 (typ.) for VDD - VSS = 15 V
  • Very low quiescent power dissipation under all digital-control input and supply conditions: 0.2 uW (typ.) @ VDD - VSS = 10 V
  • Binary address decoding on chip
  • 5-V, 10-V, and 15-V parametric ratings
  • 100% tested for quiescent current at 20 V
  • Maximum input current of 1 µA at 18 V over full package-temperature range; 100nA at 18 V and 25°C
  • Meets all requirements of JEDEC Tentative Standard No. 13A, "Standard Specifications for Description of 'B' Series CMOS Devices"
  • Applications:
    • Analog and digital multiplexing and demultiplexing
    • A/D and D/A conversion
    • Siganl gating

* When these devices are used as demultiplexers, the channel in/out terminals are the outputs and the common out/in terminals are the inputs.

Configuration16
Number of channels1
Power supply voltage - single (V)3.3, 5, 12, 16, 20
Power supply voltage - dual (V)+/-10, +/-2.5, +/-5
ProtocolsAnalog
Ron (typ) (Ω)125
CON (typ) (pF)5
ON-state leakage current (max) (µA)0.1
Supply current (typ) (µA)0.08
Bandwidth (MHz)14
Operating temperature range (°C)-55 to 125
Input/output continuous current (max) (mA)10
RatingMilitary
Drain supply voltage (max) (V)18
Supply voltage (max) (V)18
Negative rail supply voltage (max) (V)0
CDIP (J)24425.45 mm² 31.75 x 13.4
