The SN74CBT16233 is a 16-bit 1-of-2 FET multiplexer/demultiplexer used in applications in which two separate data paths must be multiplexed onto, or demultiplexed from, a single path. This device can be used for memory interleaving, where two different banks of memory need to be addressed simultaneously. The device can be used as two 8-bit to 16-bit multiplexers or as one 16-bit to 32-bit multiplexer.
Two select (SEL1 and SEL2) inputs control the data flow. When the TEST inputs are asserted, the A port is connected to both the B1 and the B2 ports. SEL1, SEL2, and the TEST inputs can be driven with a 5-V CMOS, a 5-V TTL, or a low-voltage TTL driver.
This device is designed so it does not have through current when switching directions.
Widebus is a trademark of Texas Instruments.
| Configuration | 2 |
| Number of channels | 16 |
| Power supply voltage - single (V) | 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 5 |
| ON-state leakage current (max) (µA) | 1 |
| Bandwidth (MHz) | 200 |
| Operating temperature range (°C) | -40 to 85 |
| Input/output continuous current (max) (mA) | 128 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.25 |
| Supply voltage (max) (V) | 5.25 |

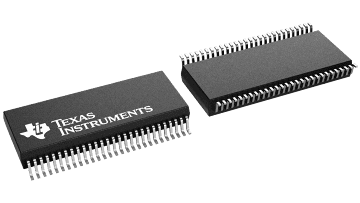

| SSOP (DL) | 56 | 190.647 mm² 18.42 x 10.35 |

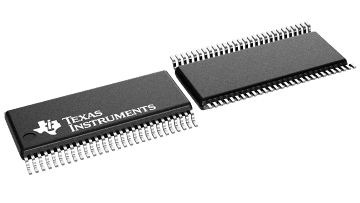

| TSSOP (DGG) | 56 | 113.4 mm² 14 x 8.1 |

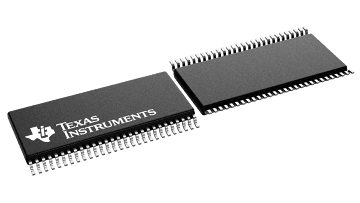

| TVSOP (DGV) | 56 | 72.32 mm² 11.3 x 6.4 |
