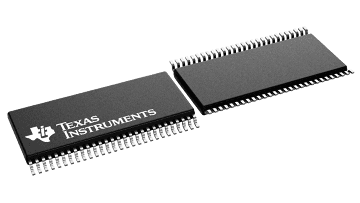

The SN74CBTLV16292 is a 12-bit 1-of-2 high-speed FET multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
When the select (S) input is low, port A is connected to port B1, and RINT is connected to port B2. When S is high, port A is connected to port B2, and RINT is connected to port B1.
This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
Widebus is a trademark of Texas Instruments.
| Configuration | 2 |
| Number of channels | 12 |
| Power supply voltage - single (V) | 2.5, 3.3 |
| Protocols | Analog |
| Ron (typ) (Ω) | 3 |
| CON (typ) (pF) | 22.5 |
| ON-state leakage current (max) (µA) | 1 |
| Bandwidth (MHz) | 200 |
| Operating temperature range (°C) | -40 to 85 |
| Features | Break-before-make, Powered-off protection |
| Input/output continuous current (max) (mA) | 128 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 3.6 |
| Supply voltage (max) (V) | 3.6 |

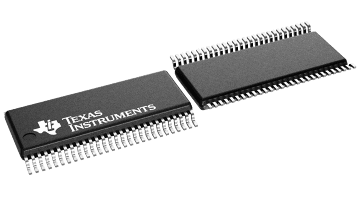

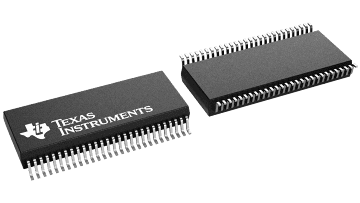

| SSOP (DL) | 56 | 190.647 mm² 18.42 x 10.35 |
| TSSOP (DGG) | 56 | 113.4 mm² 14 x 8.1 |
| TVSOP (DGV) | 56 | 72.32 mm² 11.3 x 6.4 |
