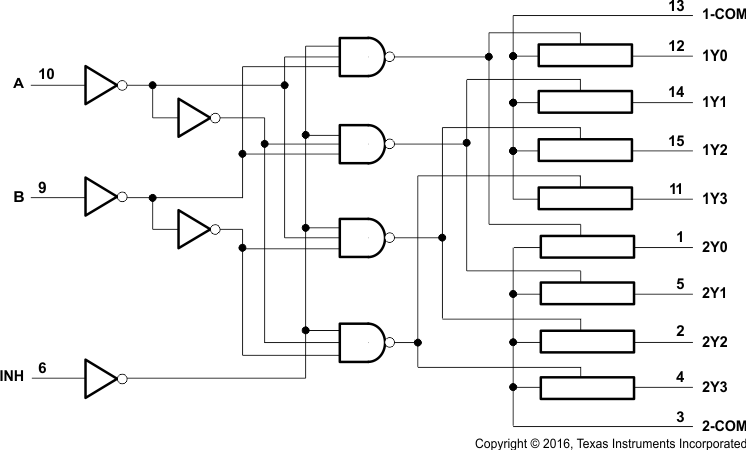

The SN74LV4052A device is a dual, 4-channel CMOS analog multiplexer and demultiplexer that is designed for 2-V to 5.5-V VCC operation.
The SN74LV4052A device handles both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction.
| Configuration | 4 |
| Number of channels | 2 |
| Power supply voltage - single (V) | 1.8, 2.5, 3.3, 5 |
| Protocols | Analog |
| Ron (typ) (Ω) | 25 |
| CON (typ) (pF) | 5.6 |
| ON-state leakage current (max) (µA) | 1 |
| Bandwidth (MHz) | 50 |
| Operating temperature range (°C) | -40 to 85 |
| Input/output continuous current (max) (mA) | 25 |
| Rating | Catalog |
| Drain supply voltage (max) (V) | 5.5 |
| Supply voltage (max) (V) | 5.5 |
| PDIP (N) | 16 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 16 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
| TVSOP (DGV) | 16 | 23.04 mm² 3.6 x 6.4 |

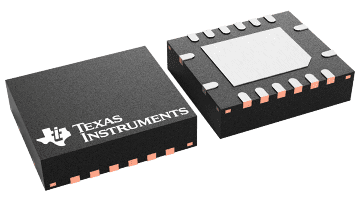

| VQFN (RGY) | 16 | 14 mm² 4 x 3.5 |
