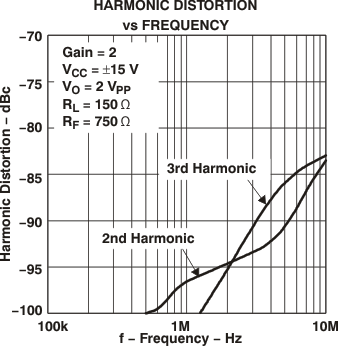

The THS3001 is a high-speed current-feedback operational amplifier, ideal for communication, imaging, and high-quality video applications. This device offers a very fast 6500-V/µs slew rate, a 420-MHz bandwidth, and 40-ns settling time for large-signal applications requiring excellent transient response. In addition, the THS3001 operates with a very low distortion of –96 dBc, making it well suited for applications such as wireless communication basestations or ultrafast ADC or DAC buffers.
All trademarks are the property of their respective owners.
| Architecture | Current FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 9 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 33 |
| GBW (typ) (MHz) | 420 |
| BW at Acl (MHz) | 420 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 6500 |
| Vn at flatband (typ) (nV√Hz) | 1.6 |
| Vn at 1 kHz (typ) (nV√Hz) | 1.6 |
| Iq per channel (typ) (mA) | 6.6 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |
| Rail-to-rail | No |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| CMRR (typ) (dB) | 73 |
| Input bias current (max) (pA) | 10000000 |
| Offset drift (typ) (µV/°C) | 5 |
| Iout (typ) (mA) | 120 |
| 2nd harmonic (dBc) | 80 |
| 3rd harmonic (dBc) | 80 |
| Frequency of harmonic distortion measurement (MHz) | 10 |
| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
