LM393-MIL

正在供货

双路差动比较器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

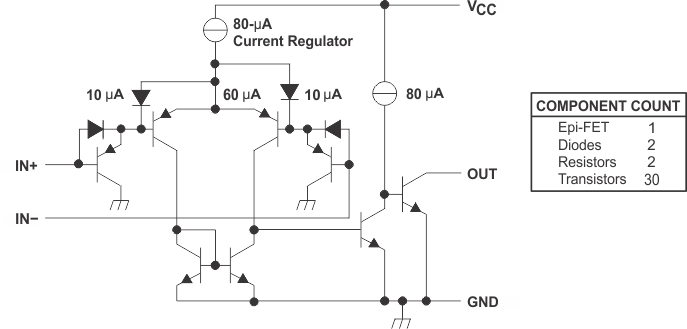

These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and V_CC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

The LM393-MIL device is characterized for operation from 0°C to 70°C.

Single-Supply or Dual Supplies
Wide Range of Supply Voltage
- Maximum Rating: 2 V to 36 V
- Tested to 30 V
Low Supply-Current Drain Independent of Supply
Voltage: 0.4 mA (Typical) Per Comparator
Low Input Bias Current: 25 nA (Typical)
Low Input Offset Voltage: 2 mV (Typical)
Common-Mode Input Voltage Range Includes Ground
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36 V
Low Output Saturation Voltage
Output Compatible with TTL, MOS, and CMOS
On Products Compliant to MIL-PRF-38535, All Parameters are Tested Unless Otherwise Noted.
On All Other Products, Production Processing does not Necessarily Include Testing of All Parameters.
