LM137HVQML

正在供货

1.5A、-50V 输入、可调节负电压调节器/LDO

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

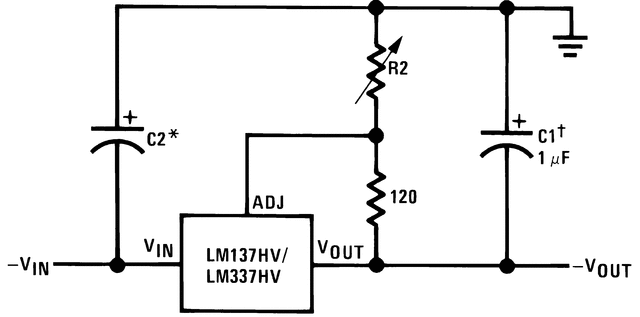

The LM137HV is an adjustable 3-terminal negative voltage regulator capable of supplying in excess of −1.5A over an output voltage range of −47V to −1.2V. This regulators is exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM137HV features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.

The LM137HV serves a wide variety of applications including local on-card regulation, programmable-output voltage regulation or precision current regulation. The LM137HV is an ideal complement to the LM117HV adjustable positive regulator.

Output Voltage Adjustable from −47V to −1.2V
1.5A Output Current Specified, −55°C ≤ T_J ≤ +150°C
Line Regulation Typically 0.01%/V
Load Regulation Typically 0.3%
Excellent Thermal Regulation, 0.002%/W
77 dB Ripple Rejection
Excellent Rejection of Thermal Transients
50 ppm/°C Temperature Coefficient
Temperature-Independent Current Limit
Internal Thermal Overload Protection
Standard 3-Lead Transistor Package
Output Short Circuit Protected

All trademarks are the property of their respective owners.

Product type	Power Management
Die or wafer type	Tested Die
Rating	Military
Operating temperature range (°C)	-55 to 150

DIESALE (Y)	—	See data sheet

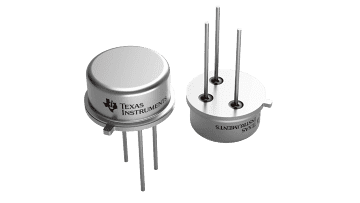

TO-CAN (NDT)	3	91.6742 mm² 10.03 x 9.14
