The LMC6762 is an ultra low power dual comparator with a maximum supply current of 10 μA/comparator. It is designed to operate over a wide range of supply voltages, from 2.7V to 15V. The LMC6762 has ensured specifications at 2.7V to meet the demands of 3V digital systems.
The LMC6762 has an input common-mode voltage range which exceeds both supplies. This is a significant advantage in low-voltage applications. The LMC6762 also features a push-pull output that allows direct connections to logic devices without a pull-up resistor.

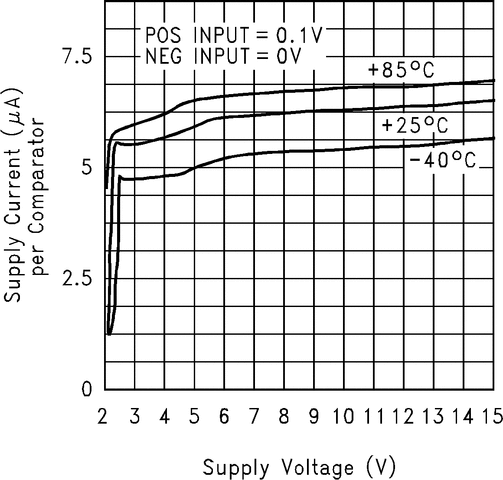

A quiescent power consumption of 50 μW/amplifier (@ V+ = 5V) makes the LMC6762 ideal for applications in portable phones and hand-held electronics. The ultra-low supply current is also independent of power supply voltage. Ensured operation at 2.7V and a rail-to-rail performance makes this device ideal for battery-powered applications.
Refer to the LMC6772 datasheet for an open-drain version of this device.
All trademarks are the property of their respective owners.
| Number of channels | 2 |
| Output type | Push-Pull |
| Propagation delay time (µs) | 4 |
| Vs (max) (V) | 15 |
| Vs (min) (V) | 2.7 |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 0.006 |
| Input bias current (±) (max) (nA) | 0.0004 |
| Rail-to-rail | In |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| VICR (max) (V) | 15.2 |
| VICR (min) (V) | -0.2 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
