| Number of channels | 2 |
| Vs (max) (V) | 36 |
| Vs (min) (V) | 4.5 |
| Input offset (±) (max) (µV) | 50 |
| Voltage gain (min) (V/V) | 10 |
| Voltage gain (max) (V/V) | 100 |
| Noise at 1 kHz (typ) (nV√Hz) | 8 |
| Features | Overvoltage protection |
| CMRR (min) (dB) | 97 |
| Input offset drift (±) (max) (V/°C) | 0.0000005 |
| Input bias current (±) (max) (nA) | 5 |
| Iq (typ) (mA) | 0.75 |
| Bandwidth at min gain (typ) (MHz) | 1 |
| Gain error (±) (max) (%) | 0.075 |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Type | Fixed Gain |
| Gain nonlinearity (±) (max) (%) | 0.002 |
| Output swing headroom (to negative supply) (typ) (V) | 0.9 |
| Output swing headroom (to positive supply) (typ) (V) | -0.9 |
| Input common mode headroom (to negative supply) (typ) (V) | 1.7 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.4 |
| Noise at 0.1 Hz to 10 Hz (typ) (µVPP) | 0.2 |

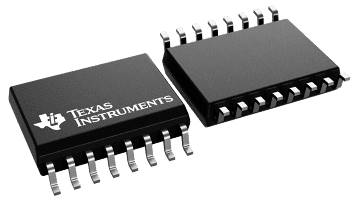

| SOIC (DW) | 16 | 106.09 mm² 10.3 x 10.3 |
