The LMC6462/4 is a micropower version of the popular LMC6482/4, combining Rail-to-Rail Input and Output Range with very low power consumption.
The LMC6462/4 provides an input common-mode voltage range that exceeds both rails. The rail-to-rail output swing of the amplifier, ensured for loads down to 25 kΩ, assures maximum dynamic signal range. This rail-to-rail performance of the amplifier, combined with its high voltage gain makes it unique among rail-to-rail amplifiers. The LMC6462/4 is an excellent upgrade for circuits using limited common-mode range amplifiers.
The LMC6462/4, with ensured specifications at 3V and 5V, is especially well-suited for low voltage applications. A quiescent power consumption of 60 μW per amplifier (at VS = 3V) can extend the useful life of battery operated systems. The amplifier's 150 fA input current, low offset voltage of 0.25 mV, and 85 dB CMRR maintain accuracy in battery-powered systems.
All trademarks are the property of their respective owners.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 15.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 3 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.5 |
| GBW (typ) (MHz) | 0.05 |
| Slew rate (typ) (V/µs) | 0.028 |
| Rail-to-rail | In, Out |
| Offset drift (typ) (µV/°C) | 2 |

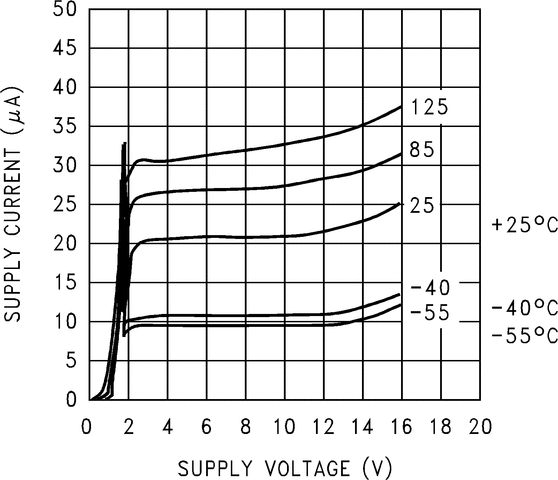

| Iq per channel (typ) (mA) | 0.02 |
| Vn at 1 kHz (typ) (nV√Hz) | 80 |
| CMRR (typ) (dB) | 85 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Input bias current (max) (pA) | 1.5 |
| Iout (typ) (A) | 0.027 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.2 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.3 |
| Output swing headroom (to negative supply) (typ) (V) | 0.005 |
| Output swing headroom (to positive supply) (typ) (V) | -0.005 |
| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
