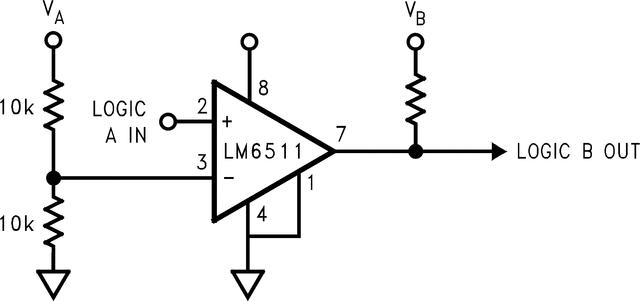

The LM6511 voltage comparator is ideal for analog-digital interface circuitry when only a +3V or +3.3V supply is available. The open-collector output permits signal compatibility with a wide variety of digital families: +5V CMOS, +3V CMOS, TTL and so on. Supply voltage may range from 2.7V to 36V between supply voltage leads. The LM6511 operates with little power consumption (Pdiss < 9.45 mW at V+ = +2.7V and V− = 0V).
This voltage comparator offers many features that are available in traditional sub-microsecond comparators: output sync strobe, inputs and output may be isolated from system ground, and wire-ORing. Also, the LM6511 uses the industry-standard, single comparator pinout configuration.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Output type | Open-collector, Open-drain |
| Propagation delay time (µs) | 0.18 |
| Vs (max) (V) | 36 |
| Vs (min) (V) | 2.7 |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 2.7 |

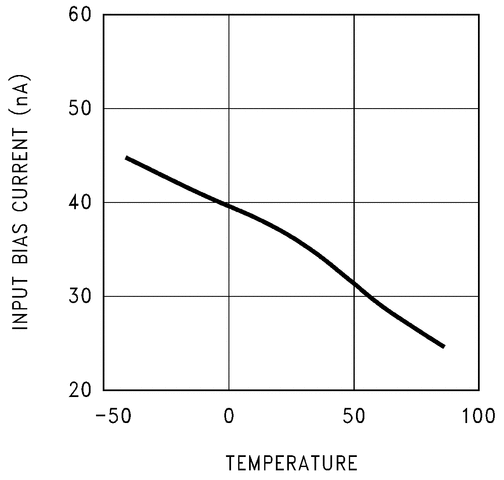

| Input bias current (±) (max) (nA) | 130 |
| Rail-to-rail | No |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Features | Strobe, Vos Adj Pin |
| VICR (max) (V) | 34.75 |
| VICR (min) (V) | 0.5 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
