The LMC6484 provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes it unique among rail-to-rail input amplifiers.
It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6484 is also an excellent upgrade for circuits using limited common-mode range amplifiers such as the TLC274 and TLC279.
Maximum dynamic signal range is assured in low voltage and single supply systems by the LMC6484's rail-to-rail output swing. The LMC6484's rail-to-rail output swing is ensured for loads down to 600Ω.
Ensured low voltage characteristics and low power dissipation make the LMC6484 especially well-suited for battery-operated systems.
See the LMC6482 data sheet for a Dual CMOS operational amplifier with these same features.
All trademarks are the property of their respective owners.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 15.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 3 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.75 |
| GBW (typ) (MHz) | 1.5 |
| Slew rate (typ) (V/µs) | 1.3 |
| Rail-to-rail | In, Out |
| Offset drift (typ) (µV/°C) | 1 |
| Vn at 1 kHz (typ) (nV√Hz) | 37 |
| CMRR (typ) (dB) | 82 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| Input bias current (max) (pA) | 25 |
| Iout (typ) (A) | 0.011 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.25 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.25 |
| Output swing headroom (to negative supply) (typ) (V) | 0.18 |
| Output swing headroom (to positive supply) (typ) (V) | -0.2 |

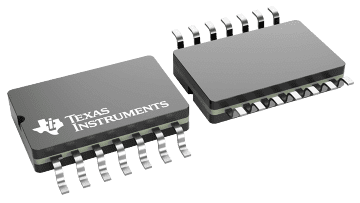

| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |
| CFP (NAC) | 14 | 62.9285 mm² 9.91 x 6.35 |
