The LMC6082 is a precision dual low offset voltage operational amplifier, capable of single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low offset voltage, make the LMC6082 ideally suited for precision circuit applications.
Other applications using the LMC6082 include precision full-wave rectifiers, integrators, references, and sample-and-hold circuits.
This device is built with TI's advanced Double-Poly Silicon-Gate CMOS process.
For designs with more critical power demands, see the LMC6062 precision dual micropower operational amplifier.
PATENT PENDING
All trademarks are the property of their respective owners.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 15.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 4.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.35 |
| GBW (typ) (MHz) | 1.3 |
| Slew rate (typ) (V/µs) | 1.5 |
| Rail-to-rail | In to V-, Out |
| Offset drift (typ) (µV/°C) | 1 |
| Iq per channel (typ) (mA) | 0.45 |
| Vn at 1 kHz (typ) (nV√Hz) | 22 |
| CMRR (typ) (dB) | 85 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

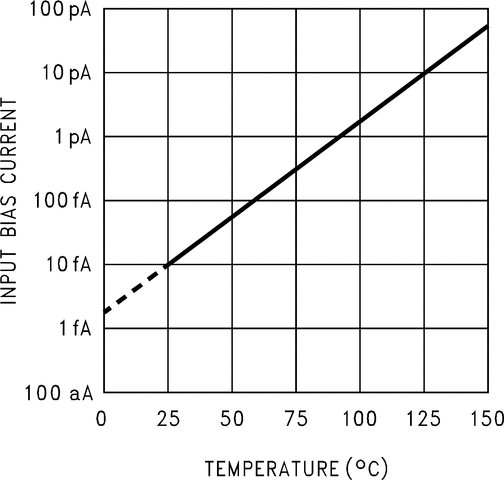

| Input bias current (max) (pA) | 0.1 |
| Iout (typ) (A) | 0.021 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.4 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.9 |
| Output swing headroom (to negative supply) (typ) (V) | 0.1 |
| Output swing headroom (to positive supply) (typ) (V) | -0.13 |
| THD + N at 1 kHz (typ) (%) | 0.01 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
