The LMC6034 is a CMOS quad operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common-mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as 2 kΩ and 600Ω.
This chip is built with National's advanced Double-Poly Silicon-Gate CMOS process.
See the LMC6032 datasheet for a CMOS dual operational amplifier with these same features. For higher performance characteristics refer to the LMC660.
All trademarks are the property of their respective owners.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 15.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 4.75 |
| Rail-to-rail | In to V-, Out |
| GBW (typ) (MHz) | 1.4 |
| Slew rate (typ) (V/µs) | 1.1 |
| Vos (offset voltage at 25°C) (max) (mV) | 9 |
| Iq per channel (typ) (mA) | 0.38 |
| Vn at 1 kHz (typ) (nV√Hz) | 22 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Offset drift (typ) (µV/°C) | 2.3 |

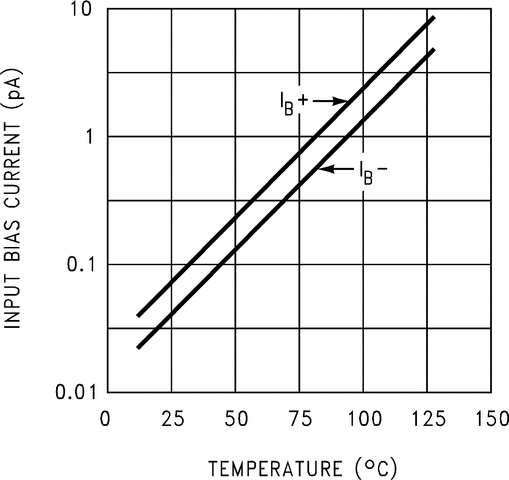

| Input bias current (max) (pA) | 0.4 |
| CMRR (typ) (dB) | 83 |
| Iout (typ) (A) | 0.04 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.4 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.9 |
| Output swing headroom (to negative supply) (typ) (V) | 0.1 |
| Output swing headroom (to positive supply) (typ) (V) | -0.13 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
