Ultra-low power consumption and low input-leakage current are the hallmarks of the LMC6041. Providing input currents of only 2 fA typical, the LMC6041 can operate from a single supply, has output swing extending to each supply rail, and an input voltage range that includes ground.
The LMC6041 is ideal for use in systems requiring ultra-low power consumption. In addition, the insensitivity to latch-up, high output drive, and output swing to ground without requiring external pull-down resistors make it ideal for single-supply battery-powered systems.
Other applications for the LMC6041 include bar code reader amplifiers, magnetic and electric field detectors, and hand-held electrometers.
This device is built with TI's advanced Double-Poly Silicon-Gate CMOS process.
See the LMC6042 for a dual, and the LMC6044 for a quad amplifier with these features.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 15.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 4.5 |
| Rail-to-rail | In to V-, Out |
| GBW (typ) (MHz) | 0.075 |
| Slew rate (typ) (V/µs) | 0.02 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |

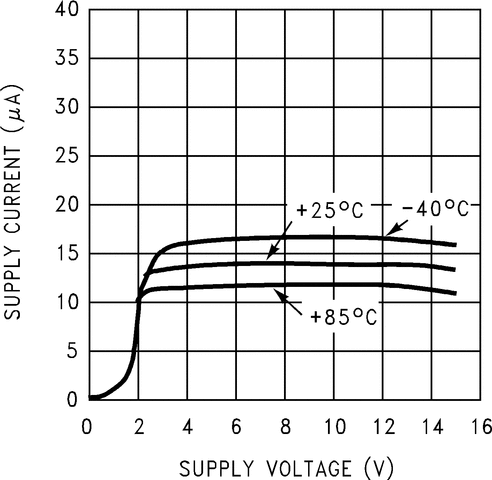

| Iq per channel (typ) (mA) | 0.014 |
| Vn at 1 kHz (typ) (nV√Hz) | 83 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Offset drift (typ) (µV/°C) | 1.3 |
| Input bias current (max) (pA) | 4 |
| CMRR (typ) (dB) | 75 |
| Iout (typ) (A) | 0.021 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.4 |
| Input common mode headroom (to positive supply) (typ) (V) | -1.9 |
| Output swing headroom (to negative supply) (typ) (V) | 0.004 |
| Output swing headroom (to positive supply) (typ) (V) | -0.013 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
