This device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is also possible AS long as the difference between the two supplies is 2 V to 28 V and VCC is a least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
| Number of channels | 4 |
| Output type | Open-collector, Open-drain |
| Propagation delay time (µs) | 1.3 |
| Vs (max) (V) | 28 |
| Vs (min) (V) | 2 |
| Vos (offset voltage at 25°C) (max) (mV) | 20 |
| Iq per channel (typ) (mA) | 0.2 |
| Input bias current (±) (max) (nA) | 500 |
| Rail-to-rail | In to V- |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| VICR (max) (V) | 26.5 |
| VICR (min) (V) | 0 |

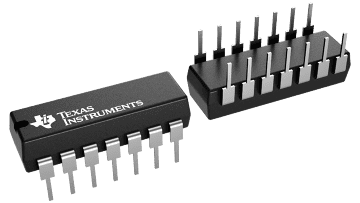

| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
