The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 30 |
| GBW (typ) (MHz) | 10 |
| Slew rate (typ) (V/µs) | 9 |
| Rail-to-rail | No |
| Vos (offset voltage at 25°C) (max) (mV) | 4 |
| Iq per channel (typ) (mA) | 4 |
| Vn at 1 kHz (typ) (nV√Hz) | 5 |
| Features | Standard Amps |
| THD + N at 1 kHz (typ) (%) | 0.002 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Iout (typ) (A) | 0.038 |
| Architecture | Bipolar |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 800000 |

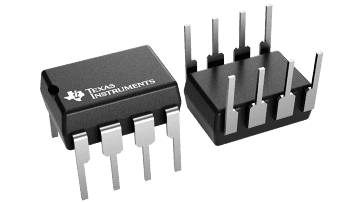

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
