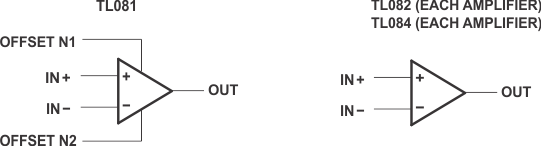

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/µs), and common-mode input to the positive supply. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 30 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 7 |
| Rail-to-rail | In to V+ |
| GBW (typ) (MHz) | 3 |
| Slew rate (typ) (V/µs) | 13 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |
| Iq per channel (typ) (mA) | 1.4 |
| Vn at 1 kHz (typ) (nV√Hz) | 18 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Offset drift (typ) (µV/°C) | 18 |
| Features | Standard Amps |
| Input bias current (max) (pA) | 200 |
| CMRR (typ) (dB) | 86 |
| Iout (typ) (A) | 0.01 |
| Architecture | FET |
| Input common mode headroom (to negative supply) (typ) (V) | 3 |
| Input common mode headroom (to positive supply) (typ) (V) | 0 |
| Output swing headroom (to negative supply) (typ) (V) | 1.5 |
| Output swing headroom (to positive supply) (typ) (V) | -1.5 |
| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
