The TL712 is a high-speed comparator fabricated with bipolar Schottky process technology. The circuit has differential analog inputs and complementary 3-state TTL-compatible logic outputs with symmetrical switching characteristics. When the output enable (OE) is low, both outputs are in the high-impedance state. This device operates from a single 5-V supply and is useful as a disk memory read-chain data comparator.
| Number of channels | 1 |
| Output type | Differential |
| Propagation delay time (µs) | 0.025 |
| Vs (max) (V) | 5.25 |
| Vs (min) (V) | 4.75 |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 17 |
| Input bias current (±) (max) (nA) | 600000 |
| Rail-to-rail | No |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Features | Hysteresis, Strobe |
| VICR (max) (V) | 5.5 |
| VICR (min) (V) | 0 |

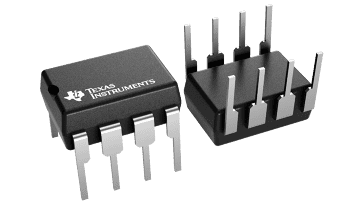

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |

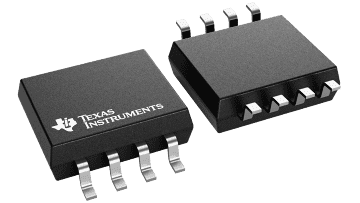

| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |

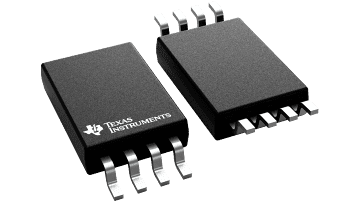

| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |
