The TL714C is a high-speed differential comparator fabricated with bipolar Schottky process technology. The circuit has differential inputs and a TTL-compatible logic output with symmetrical switching characteristics.
The device operates from a single 5-V supply and is useful as a disk-memory read-chain data comparator.
| Number of channels | 1 |
| Output type | Differential |
| Propagation delay time (µs) | 0.006 |
| Vs (max) (V) | 5.25 |
| Vs (min) (V) | 4.75 |
| Vos (offset voltage at 25°C) (max) (mV) | 10 |
| Iq per channel (typ) (mA) | 7 |
| Input bias current (±) (max) (nA) | 600000 |
| Rail-to-rail | No |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Features | Hysteresis |
| VICR (max) (V) | 3.6 |
| VICR (min) (V) | 1.4 |

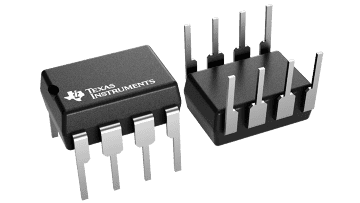

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
