The LM837 is a quad operational amplifier designed for low noise, high speed and wide bandwidth performance. It has a new type of output stage which can drive a 600Ω load, making it ideal for almost all digital audio, graphic equalizer, preamplifiers, and professional audio applications. Its high performance characteristics also make it suitable for instrumentation applications where low noise is the key consideration.
The LM837 is internally compensated for unity gain operation. It is pin compatible with most other standard quad op amps and can therefore be used to upgrade existing systems with little or no change.
All trademarks are the property of their respective owners.
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 36 |
| GBW (typ) (MHz) | 10 |
| Slew rate (typ) (V/µs) | 10 |
| Rail-to-rail | No |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 2.5 |
| Vn at 1 kHz (typ) (nV√Hz) | 4.5 |
| Features | Standard Amps |

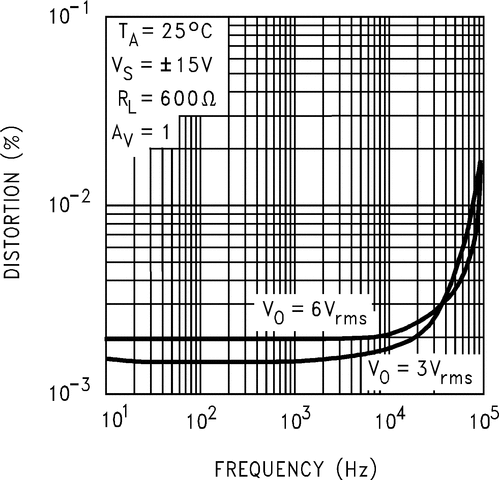

| THD + N at 1 kHz (typ) (%) | 0.0015 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (A) | 0.04 |
| Architecture | Bipolar |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 1000000 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
